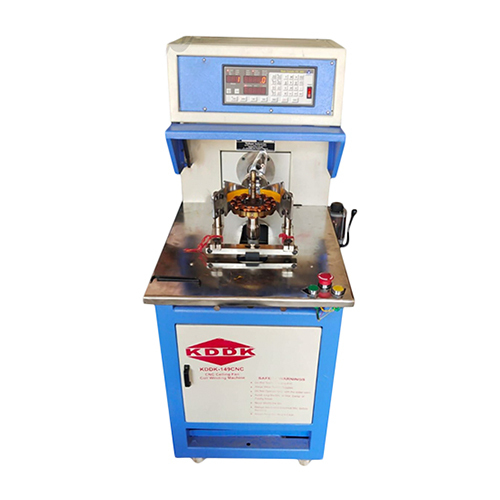

CNC Single Drive Single Head CNC Ceiling Fan Motor Winding Machine

Product Description

A CNC Single Drive Single Head Ceiling Fan Motor Winding Machine is an industrial tool used to precisely wind copper or aluminum coils into ceiling fan stators. Using a single drive motor and programmable computer numerical control, it automates wire winding, slot-changing, and wire-cutting to efficiently produce high-quality motor coil High Production Capacity: Designed to wind a complete fan stator in just \(3 - 4\) minutes, yielding \(150\) to \(600\) stators per day depending on the model.Microprocessor Controller: Often features a PLC interface that stores multiple winding programs for various stator sizes (e.g., \(12\), \(14\), \(16\), \(18\) slots), automatically controlling wire size, turns, and speed.Single Drive Mechanism: Utilizes one primary AC/DC motor (typically 1 to 2 HP) linked with stepper or traverse motors to maneuver the winder head, keeping the machinery compact and cost-effective.Automated Operations: Features automatic wire traversing, indexing, clamping, and trimming, drastically reducing the need for manual intervention
